Cable & Connector Diagrams

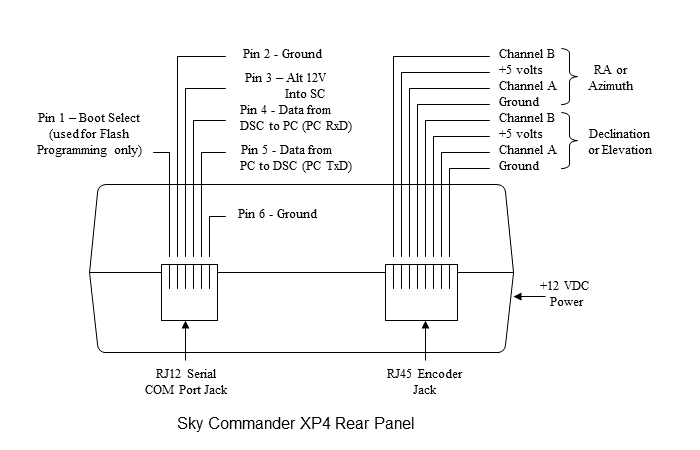

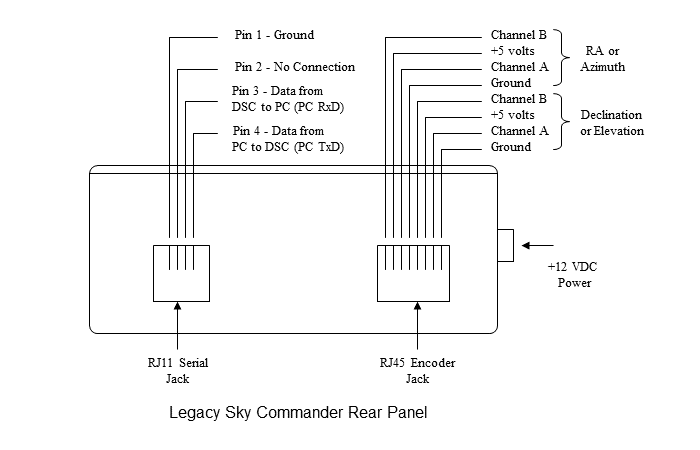

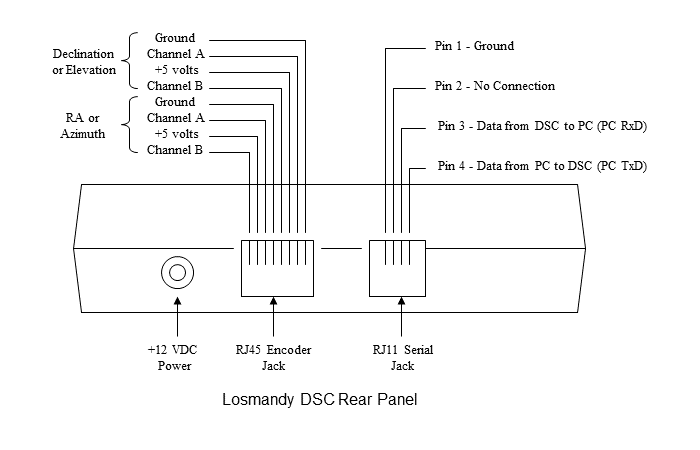

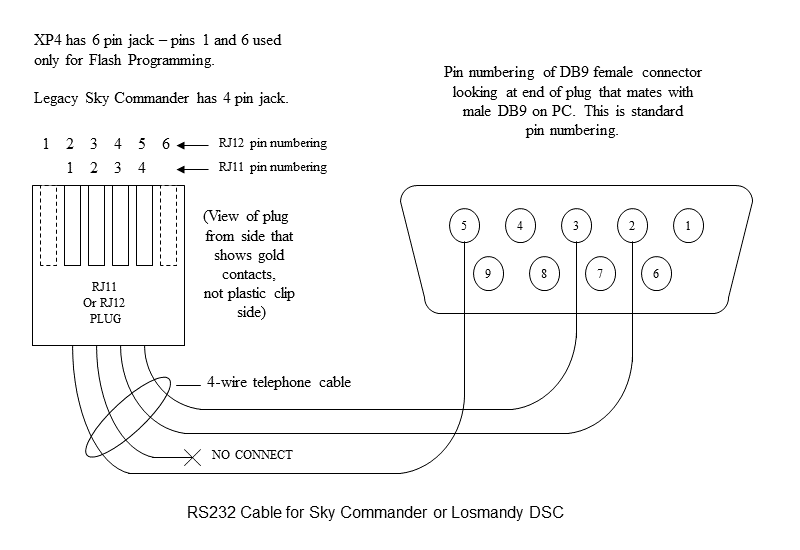

Below you will find useful schematics and diagrams of cables and connectors.

	Download the schematics in high resolution pdf format easy to print out on a printer. Download the Drawings Important Note on Losmandy G11 Encoder Cable: The Losmandy encoder install kit for the G11 mount requires a special encoder cable. This cable is wired opposite to the standard encoder cable. Specifically, the orientation of the RJ-11 plug (4 pin) with respect to the four wires of the cable (black, red, green, yellow) is upside down. In other words, the RJ11 connector must be crimped onto the cable in the opposite orientation for it to work with the G11 encoder kit supplied by Losmandy.

Download the schematics in high resolution pdf format easy to print out on a printer.

Important Note on Losmandy G11 Encoder Cable: The Losmandy encoder install kit for the G11 mount requires a special encoder cable. This cable is wired opposite to the standard encoder cable. Specifically, the orientation of the RJ-11 plug (4 pin) with respect to the four wires of the cable (black, red, green, yellow) is upside down. In other words, the RJ11 connector must be crimped onto the cable in the opposite orientation for it to work with the G11 encoder kit supplied by Losmandy.
